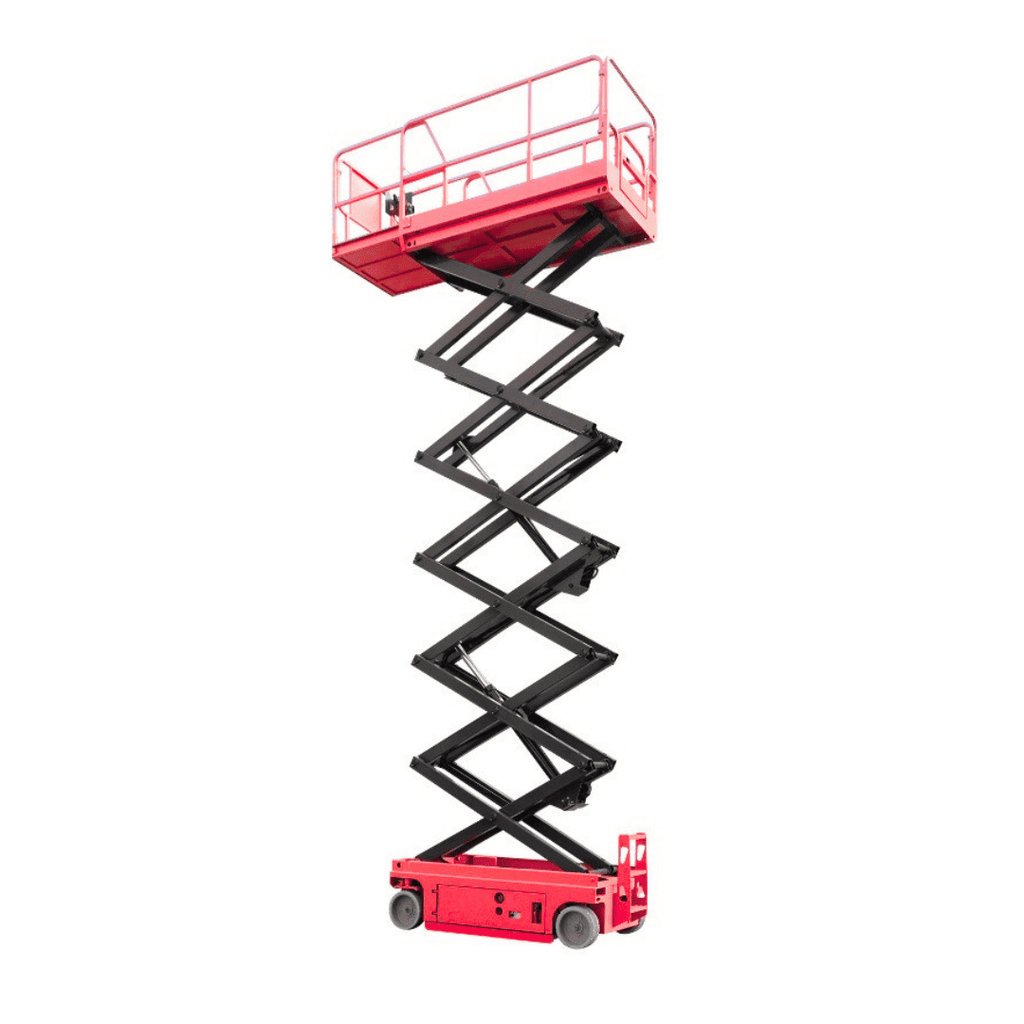

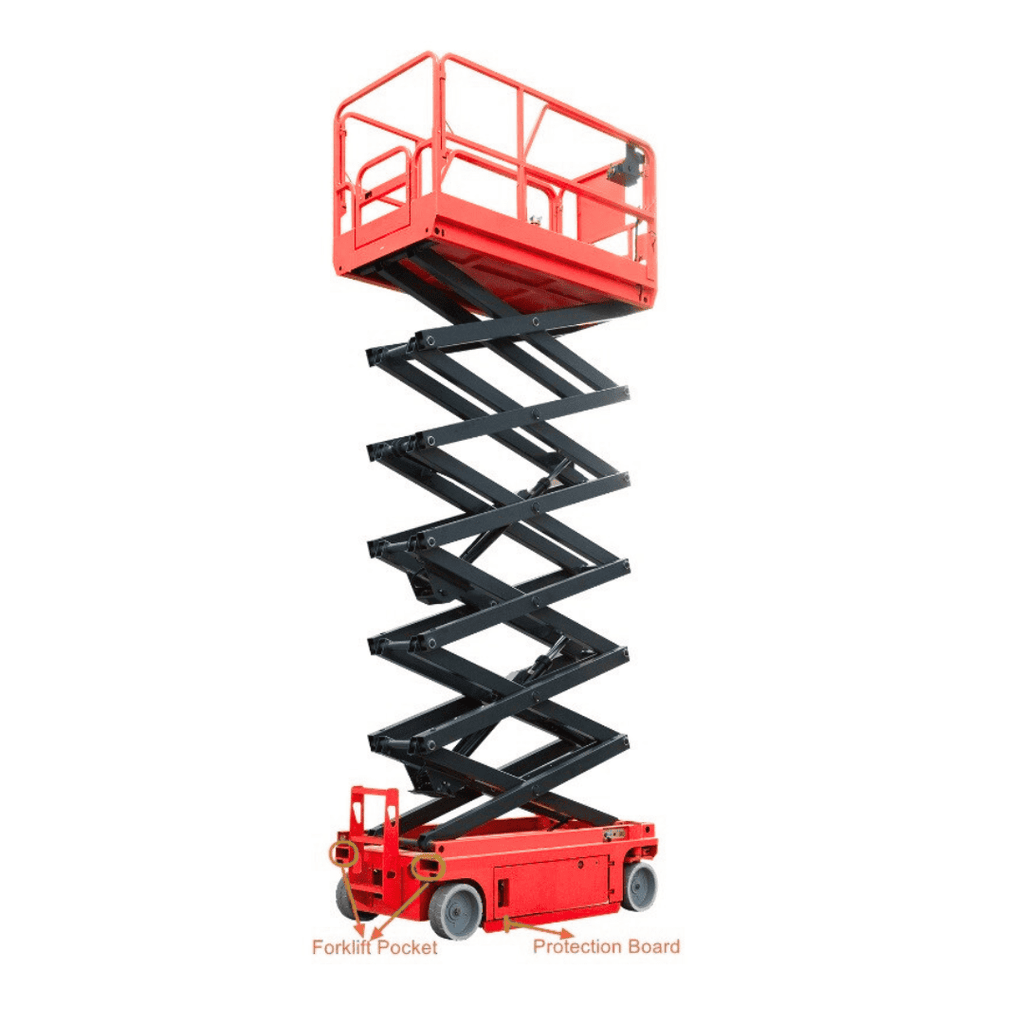

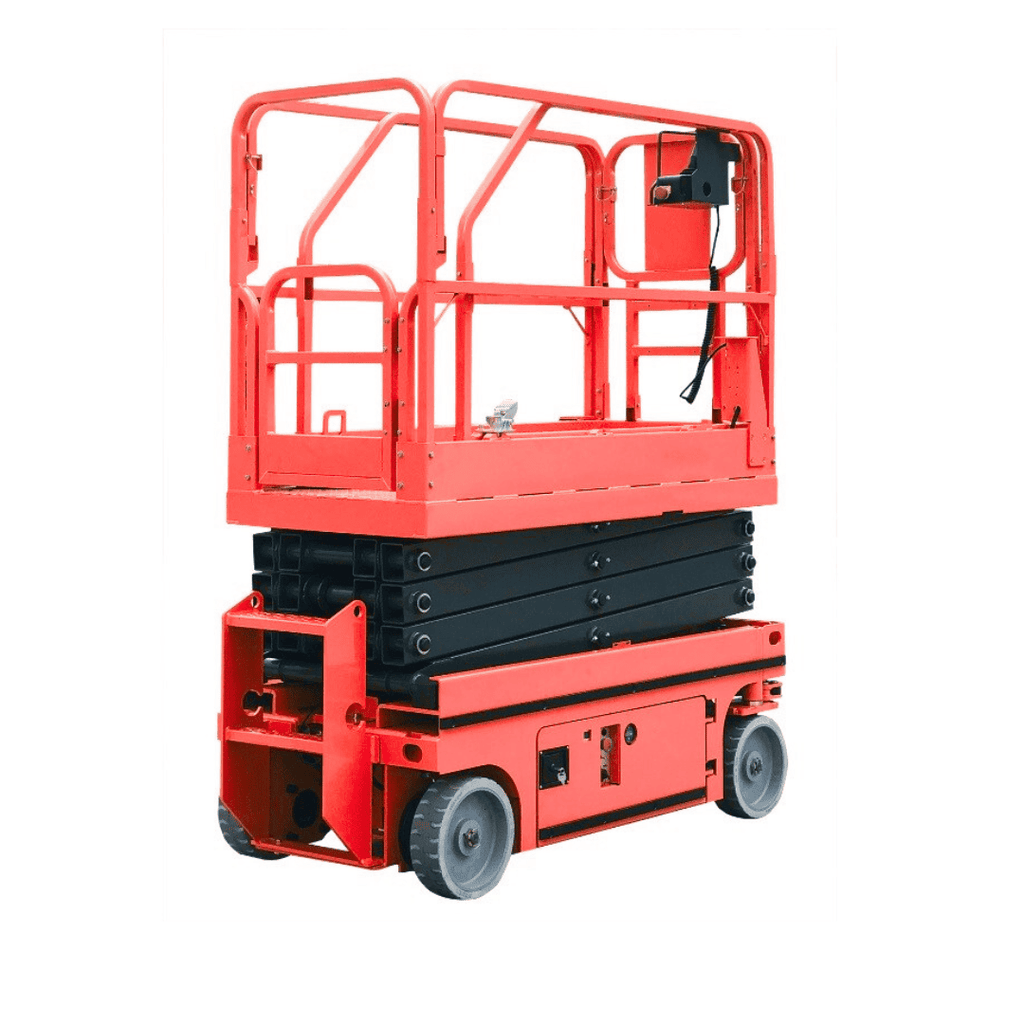

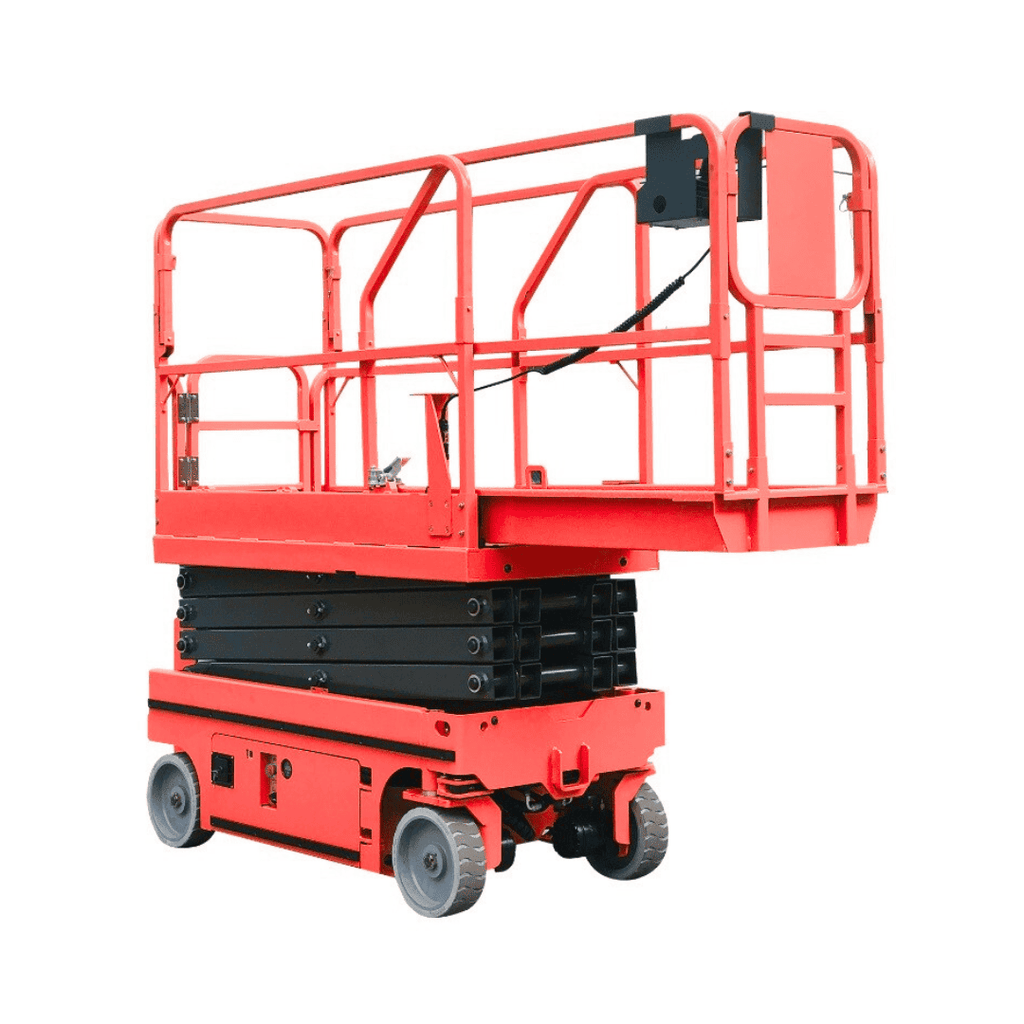

Self Propelled Scissor Lift
1. Self propelled scissor lift ,with automatic walking function, can be in different work condition, do not need external power supply, do not need artificial traction.
2. Mobile flexible, convenient operation, lift freely, only one people can finish forward, backward, steering, fast and slow walk ,easily moved, spacious working platforms, high working efficiency.
3. Scissor lift can be move while extended and controlled from platform by the operator.
4. Most models are equipped with zero inside turning radius capability, can be easily and flexibly operated in crowed working conditions such as construction site,elevator, and narrow corridor. Lift-down,turning, forward and backward movements can be easily operated by one person.
| Model | |
| Platform Capacity | 240kg |
| Working Height Max | 5.90m |
| Platform Height Max | 3.90m |
| Stowed Length | 1.32m |
| Stowed Width | 0.76m |
| Stowed Height（Rails Up） | 1.92m |
| Stowed Height（Rails Down） | 1.52m |
| Platform Size（L*W） | 1.15*0.60m |
| Wheelbase | 0.99m |
| Ground Clearance | 0.05m |
| Raise/Lower Time | 34/21sec |
| Tire | 6in/8in |
| Lifting Motor | 12V/1.2kw |
| Power Source | 12V/85Ah |
| Charger | 12V/15A |
| Weight | 520kg |
